CVC/Central Venous Catheter kits
- Specifications
- Product Feature
| Configuration (Catheter Structure) | Catheter Diamer/Velocity | Catheter Length |
Single lumen | 22G/24G | 5/8/10/13/15cm |
| Single lumen | 18G/20G | 5/813/15/16/20cm |
Single lumen | 14G/16G | 13/15/16/20/30cm |
| Double lumens | 4F | 5/8/13cm |
| Double lumens | 5F | 5/8/13/15/216cm |
| Double lumens | 6F/7F | 15/16/20/30cm |
| Triple lumens | 5/F5.5F/6F | 5/8/13/15/16cm |
| Triple lumens | 7F/8F | 13/15/16/20/30cm |
| Four lumens | 8.5F | 13cm/15cm/16cm/20cm |
Core advantages:
1- Imported TPU material for the indwelling catheter, with excellent and stable feature, no leaching, no powder shedding;
2- With optimized special processing technique of the Luer-lock connector, with good resistance and no cracking;
3- Complete ranges specification for choice; B.braun style and Arrow( Teleflex) style for choice;
4- Original manufacturer, provide OEM/ODM manufacturing;
1)Radiopaque material of the catheter, clearly visible while it is X-ray or CT scanning;
2)TPU material used for catheter to make it good biocompatibility and physical properties;
3)Design of soft blue-tip, which would be automatically soften at 37℃ , reduce the damage to blood vessels and tissues.
4)Design of“J” tip for the guide wire, avoiding puncturing to the small vessel and damage the tissue, improve the safety of entry.
5)Different choice of single lumen, double lumen, triple lumen, four lumen and various length, “Y” needle and “I” needle for the puncturing way for choice.

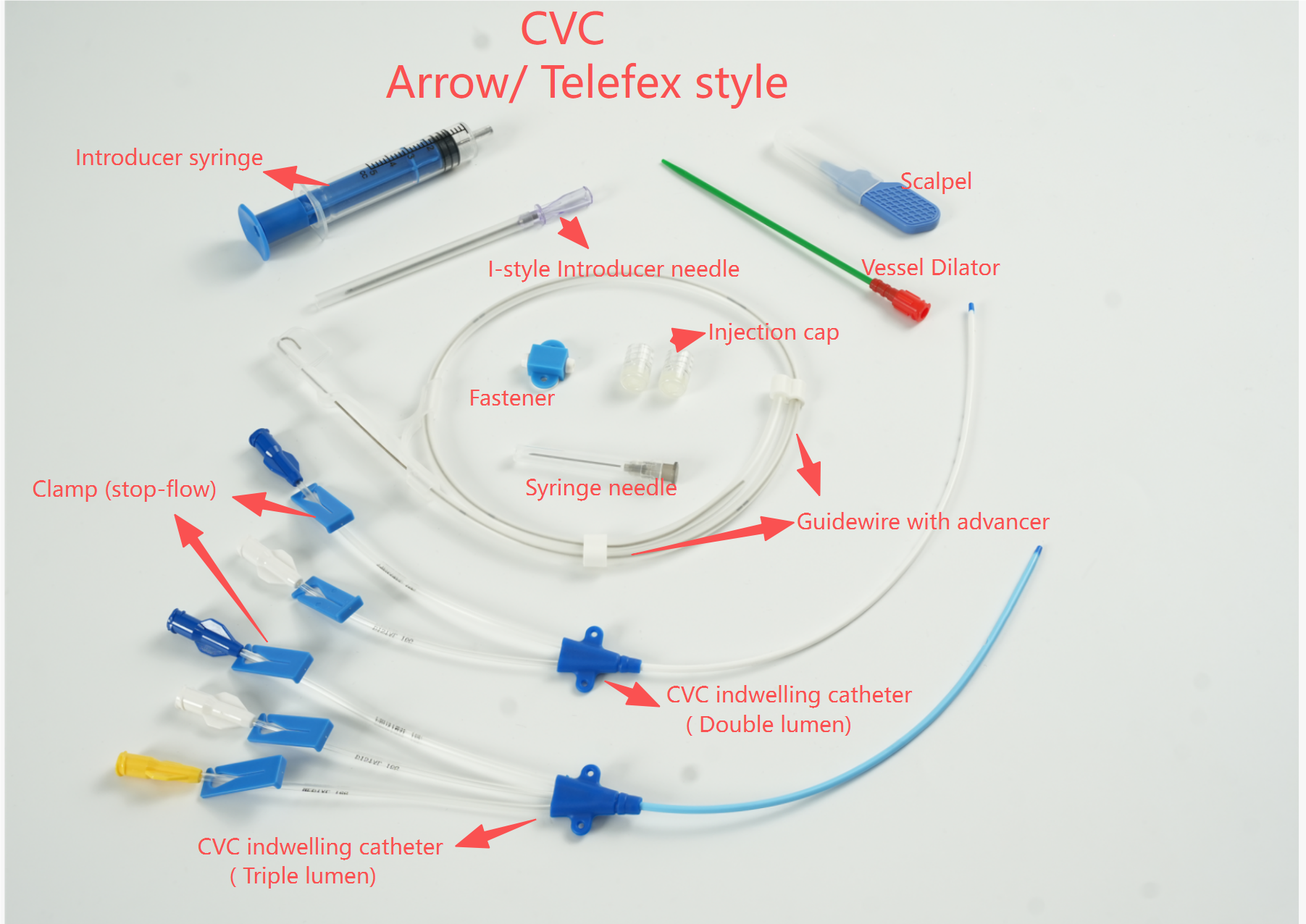

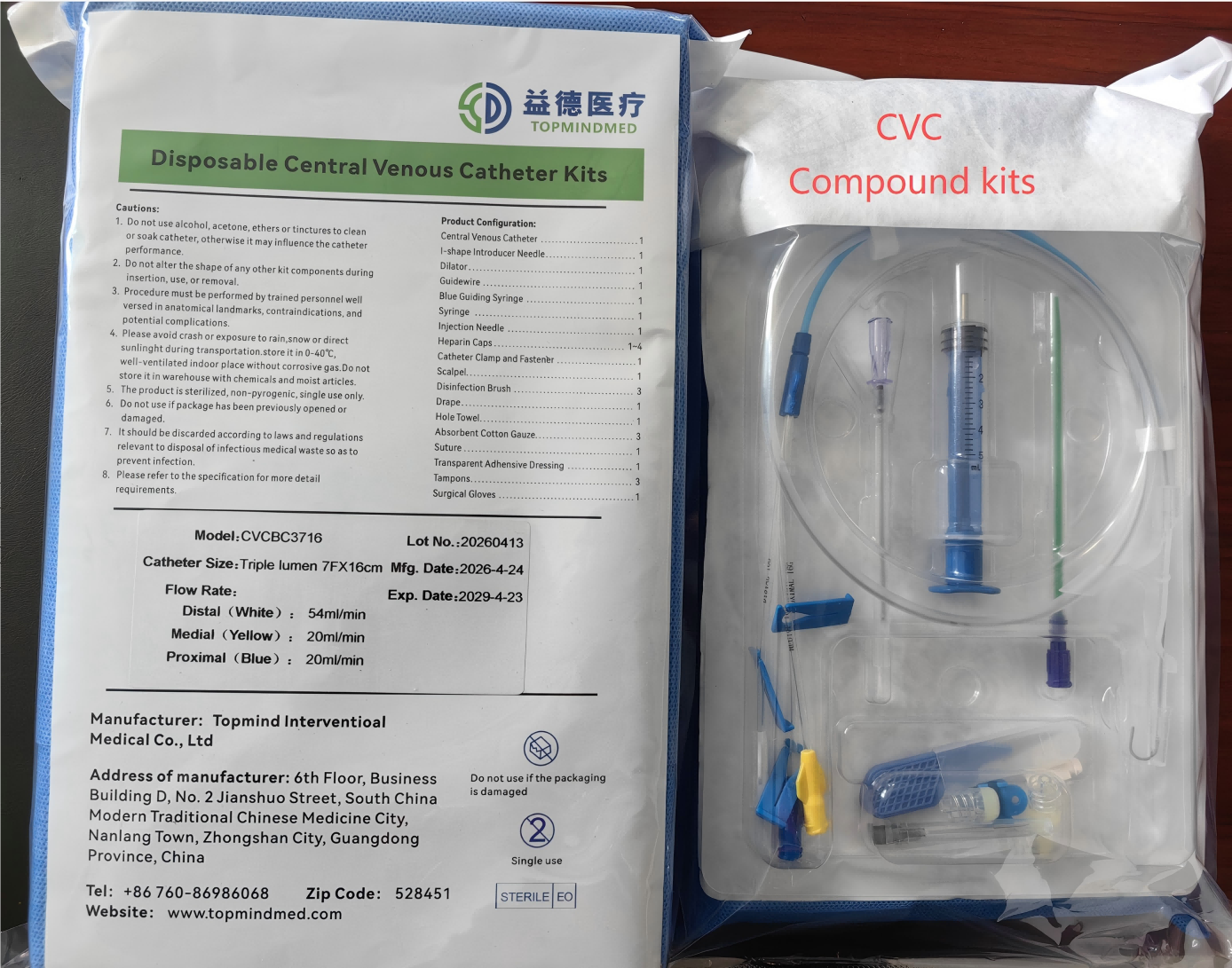

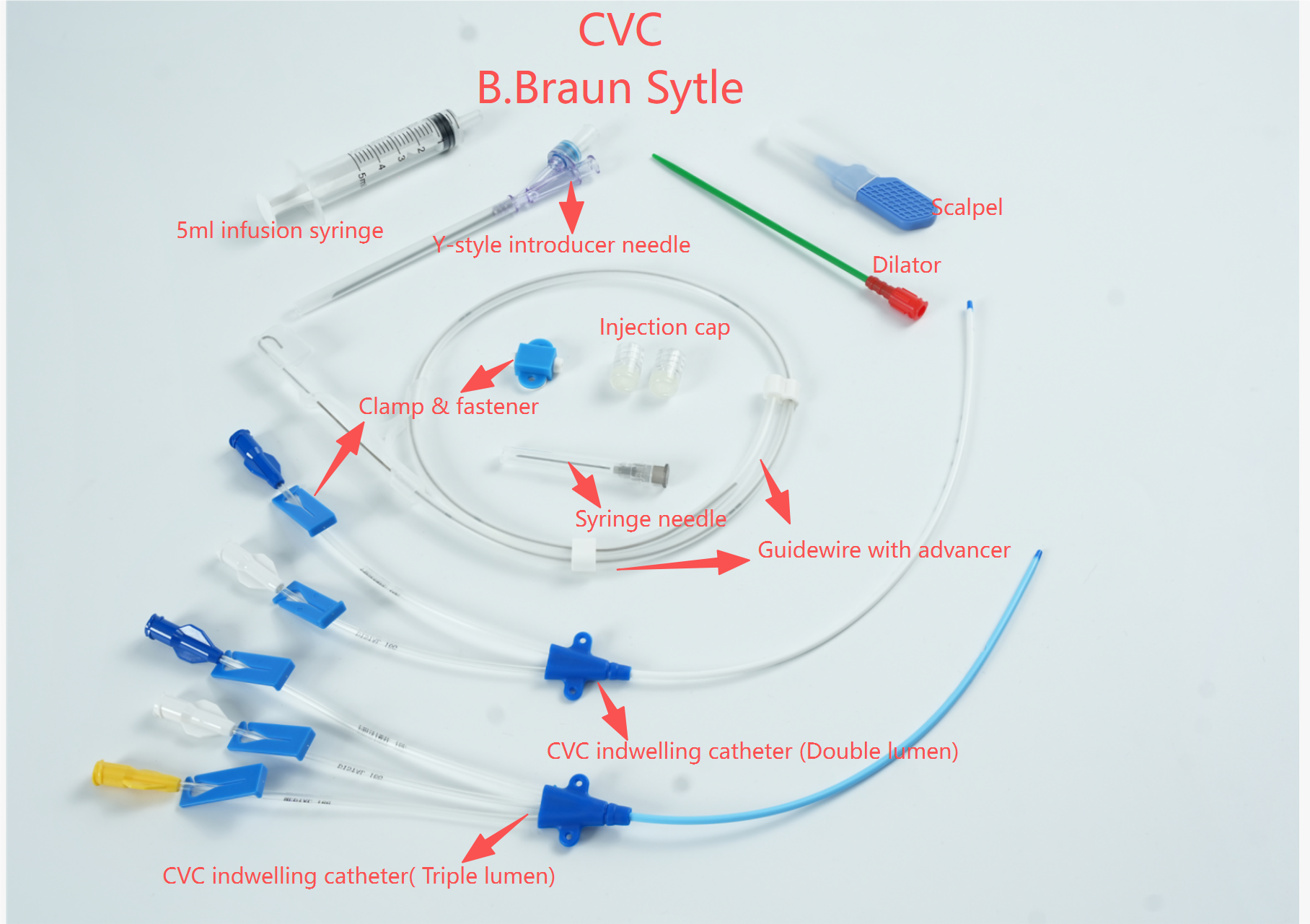

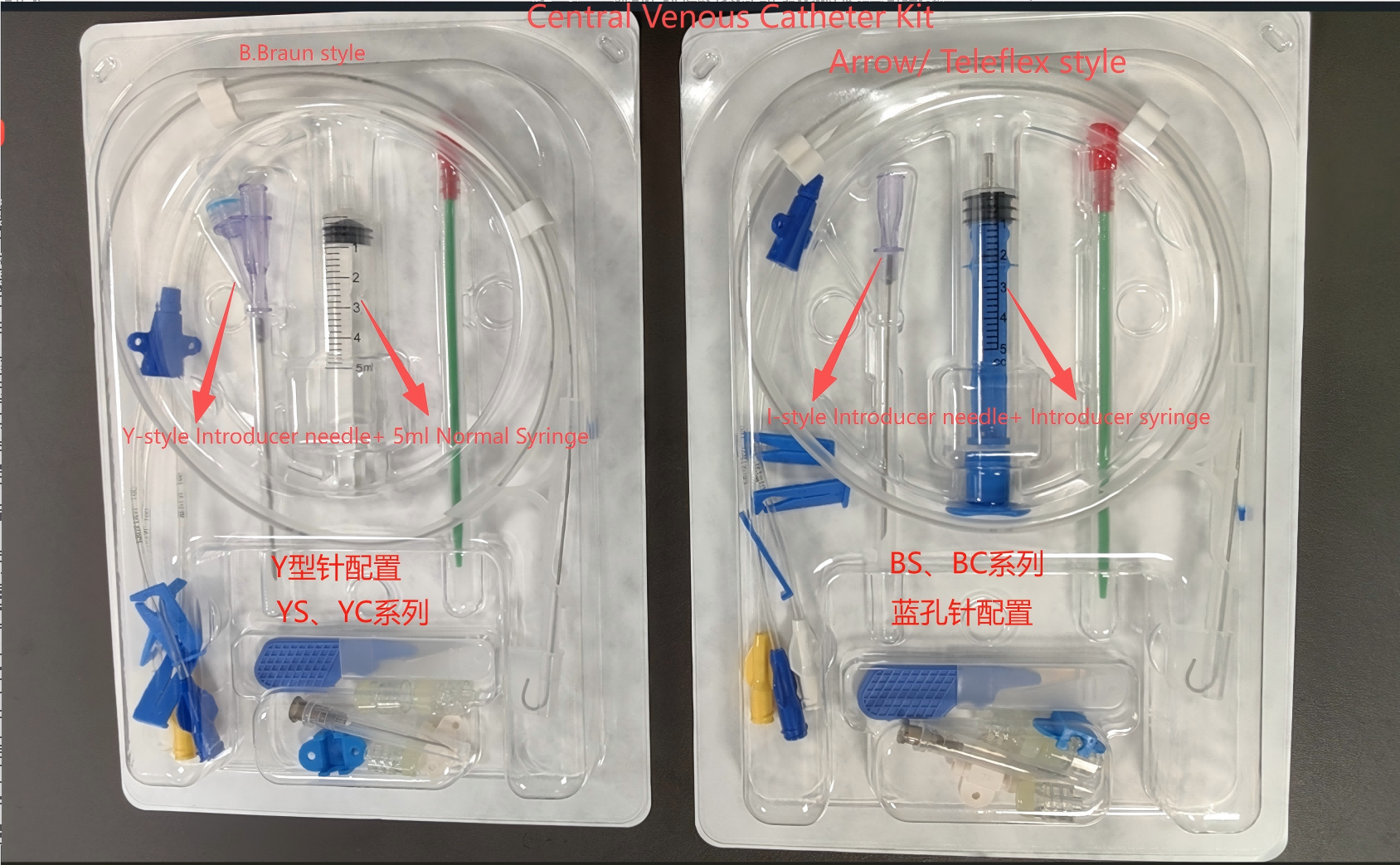

Standard Kits conponents include:
1. CVC indwelling
2. Guidewire with advancer (Nitinol)
3. Vessel Dilator
4. Clamp & Fastener
5. Introducer Needle (I-Shape or Y-shape)
6. Introducer Syringe/ Infusion syringe
7. Syringe Needle
8. Injcetion cap
9. Scalpel
